Commercial HVAC & Rooftop Unit Field Engineering Reference

Comprehensive field manuals, Simplicity® microcomputer diagnostic codes, R-410A / R-22 refrigerant charge subcooling parameters, and certified OEM replacement parts catalogs for commercial packaged rooftop machinery.

⚙️

Equipment Range 3 to 50+ Ton RTUs

🧪

Refrigerant Standard R-410A & R-22 Parameters

📟

Control Electronics Simplicity, ReliaTel, DDC

🏢

Emergency Response Nationwide Commercial Dispatch

Dispatch: (866) 227-0886 Diagnostic Protocol OEM Parts Directory

FEATURED COMMERCIAL RTU GUIDE ● SPEC VALIDATED

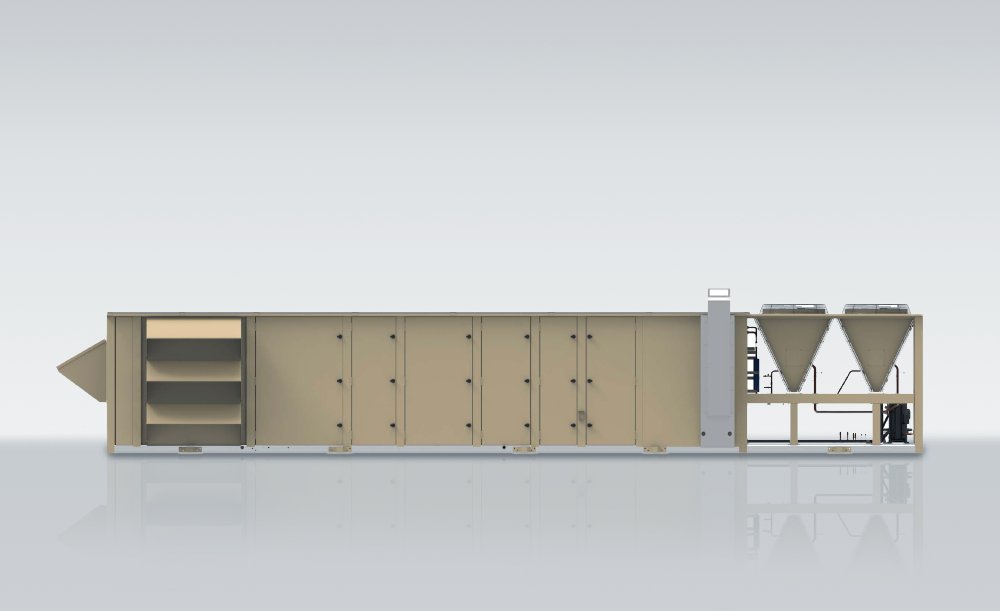

York Millennium Z-Series Commercial Rooftop Unit

York® Millennium Z-Series (R-410A)

Models Z22, Z23, Z24 • 25, 30 & 40 Ton Packaged Systems

Open Manual →

24/7 Commercial Dispatch

Commercial rooftop unit down? Connect directly with licensed mechanical service technicians ready for on-site dispatch.

Call Emergency Dispatch →

Fault Code Directory

Decode LED flash codes 1–14 on Simplicity, ReliaTel, and microcomputer boards with verified corrective procedures.

Troubleshooting Guide →

OEM Replacement Parts

Direct factory part numbers for York, Johnson Controls, Carrier, and Trane boards, sensors, switches, and blowers.

Search Parts Catalog →

Refrigerant & Subcooling Specs

Target subcooling, superheat tables, microchannel charging rules, and saturation pressure charts for field techs.

View Charging Matrix →

Equipment Architecture

Commercial Packaged Rooftop Unit Categories

AirComf maintains technical specifications, electrical wiring diagrams, and operational diagnostics across all major light-commercial and heavy-commercial rooftop package configurations.

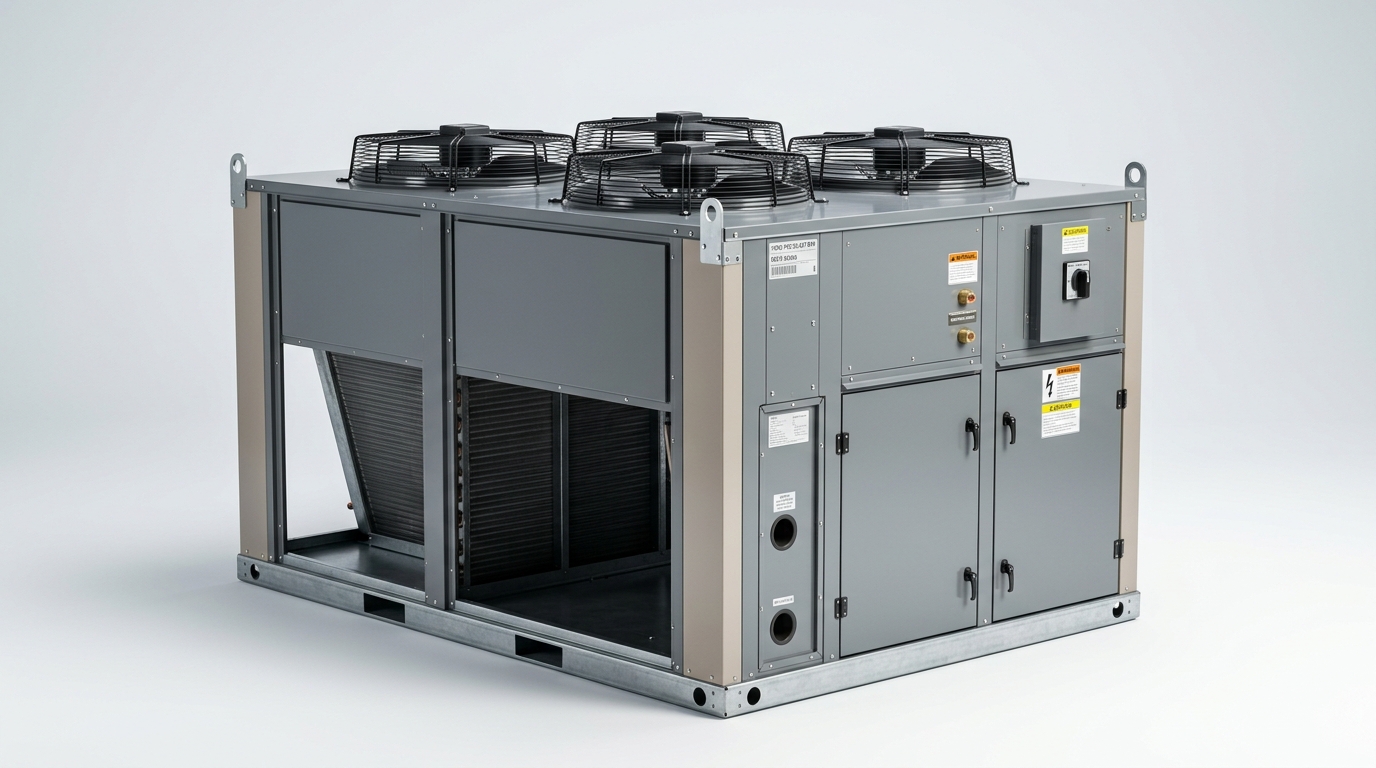

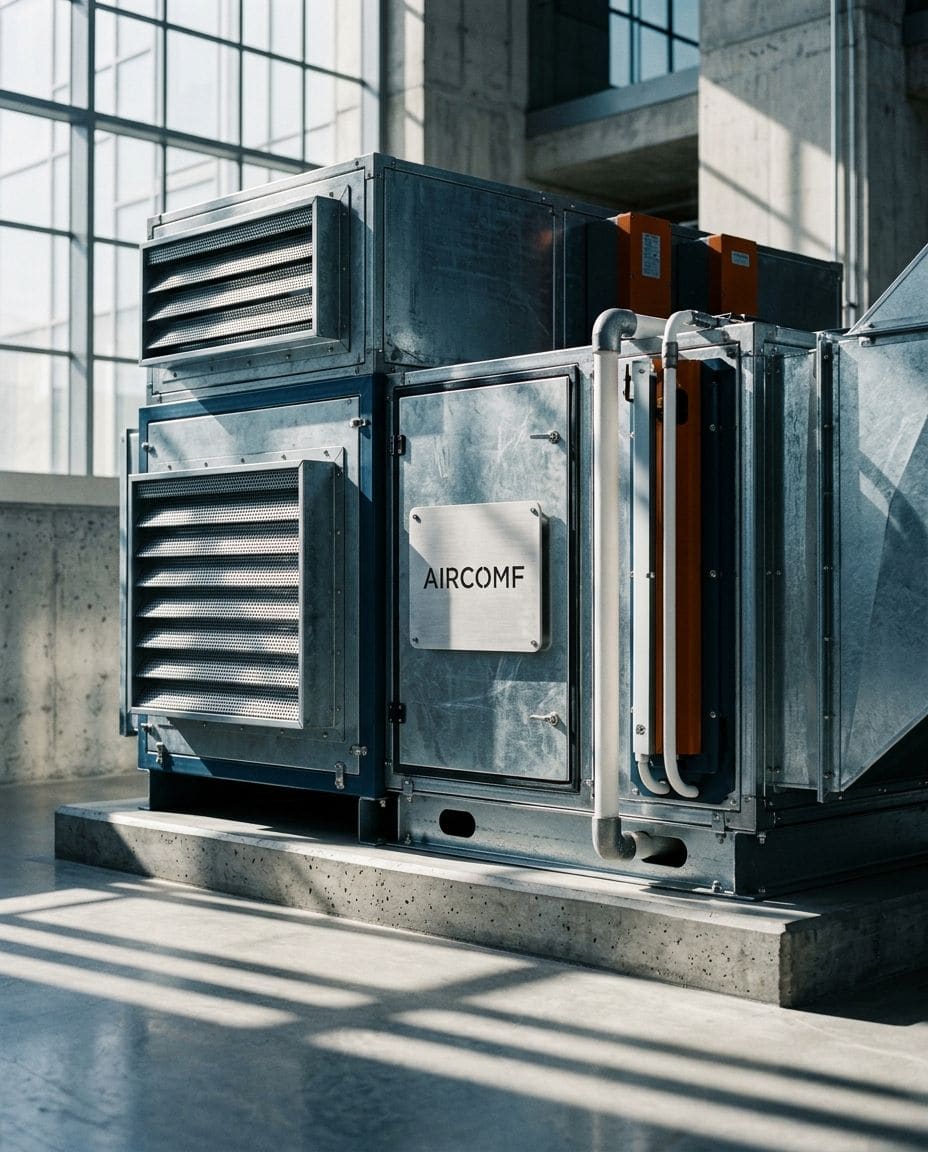

Heavy Commercial Commercial 25-Ton Rooftop Packaged Unit

Large Tonnage Commercial RTUs (20 to 50 Tons)

Multi-stage scroll compressor units engineered for retail distribution centers, hospitals, and office buildings. Features dual refrigeration circuits and economizer dampening.

25, 30, 40 Ton 460V 3-Phase Dual Independent Circuits

Explore York Millennium Manual →

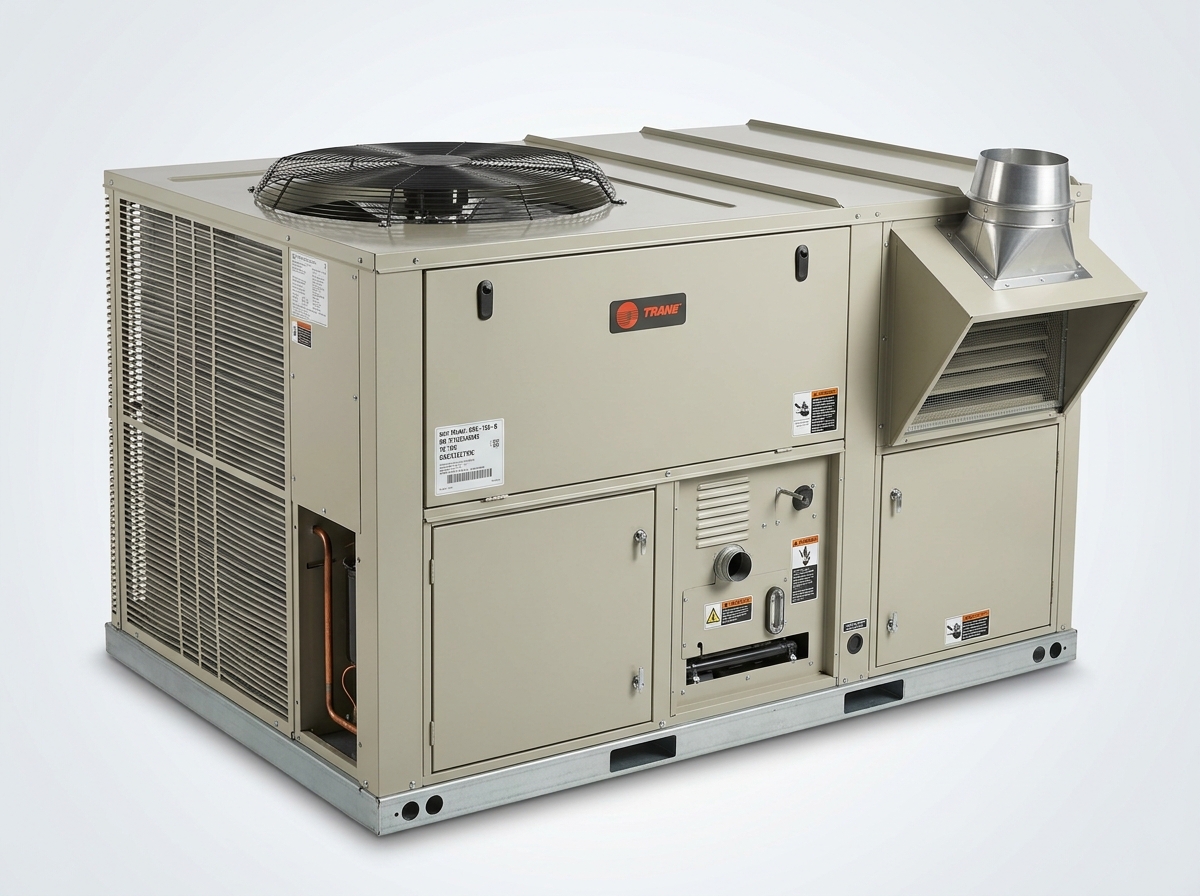

Light Commercial Commercial Gas Electric Packaged Unit

Gas / Electric Packaged Units (7.5 to 15 Tons)

Combined electric DX cooling with two-stage stainless steel tubular gas heat exchangers. Equipped with induced draft combustion blowers and direct spark ignition controllers.

Natural Gas / LP Two-Stage DX Belt-Drive Blower

View Gas Heating Sequence →

Electrification Commercial Rooftop Packaged Heat Pump

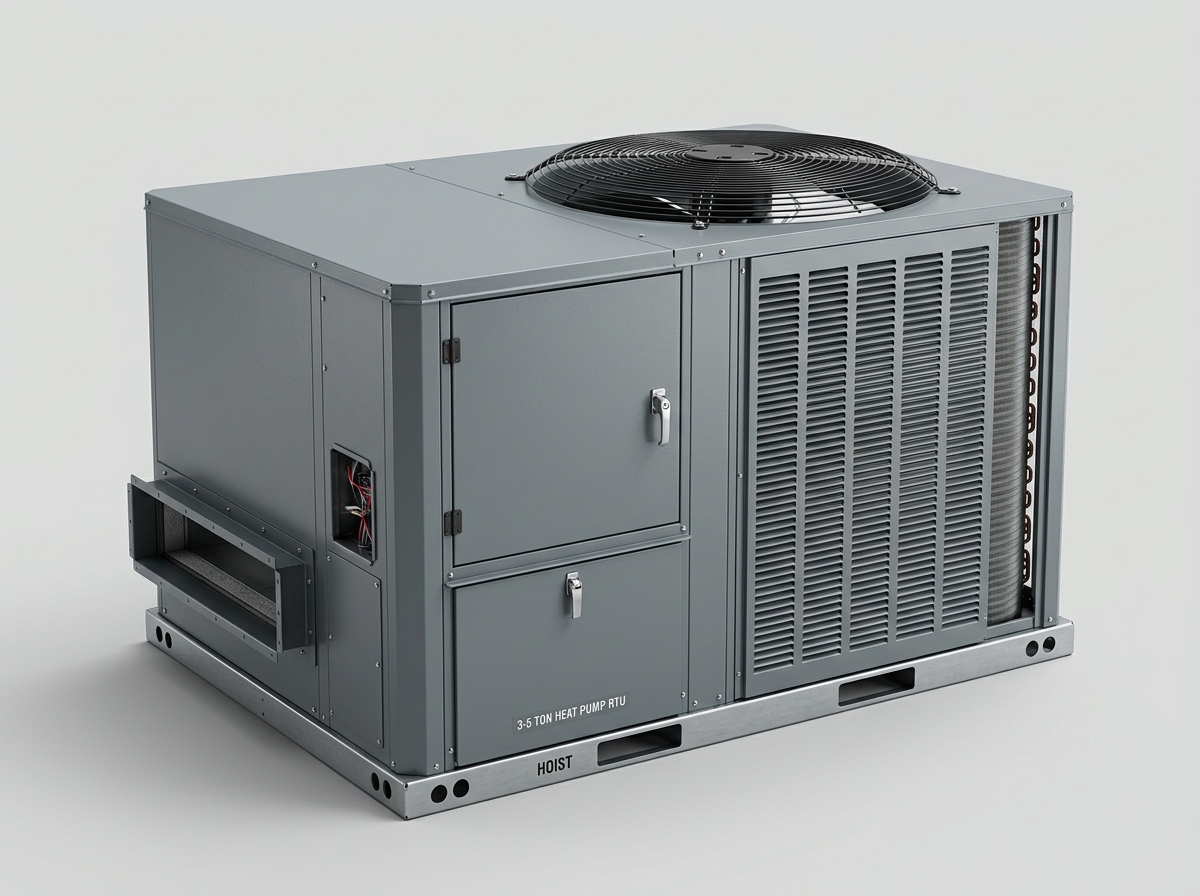

Commercial Packaged Heat Pumps (3 to 10 Tons)

All-electric reverse-cycle rooftop heat pumps with bi-flow thermal expansion valves, demand defrost control microprocessors, and supplemental electric strip heaters.

R-410A High SEER Demand Defrost Bi-Flow TXV

Check Heat Pump Subcooling →

Engineering Field Guides

Core Technical Manuals & Diagnostic Protocols

Field-tested documentation compiled by commercial mechanical contractors and certified master technicians for rooftop maintenance, service, and commissioning.

Flagship Field Service Manual

York® Millennium Z-Series (R-410A) Complete Field Guide

Complete engineering field reference for York Z22, Z23, and Z24 (25–40 Ton) commercial packaged systems. Covers microcomputer diagnostics, sequence of operations, subcooling charging matrices, electrical schemas, and certified OEM replacement parts.

Complete 1–14 Simplicity LED Fault Code Matrix with root-cause analysis
Detailed 460V 3-phase electrical wiring schematics and phase-reversal troubleshooting
Factory subcooling & superheat charging specifications per circuit
Direct OEM replacement part numbers for control boards and sensors

Open Field Service Manual →

Universal Diagnostic Protocol

Universal Commercial RTU Troubleshooting Protocol

Systematic 5-step diagnostic framework for commercial rooftop units of all manufacturers (York, Carrier, Trane, Lennox). Provides methodical isolation for control lockout, high head pressure, frozen evaporator coils, and economizer failures.

Step-by-step 24VAC safety string & control transformer isolation
High-pressure switch trip vs condenser fan motor capacitor diagnostics
Economizer minimum position actuator & mixed air temperature troubleshooting
Blower belt tensioning, sheave alignment, and static pressure balancing

Read Troubleshooting Guide →

Refrigeration Field Reference

Commercial Refrigerant Charge & Subcooling Specs

Precision charging tables and saturation pressure-temperature charts for commercial systems using R-410A and R-22. Includes critical procedures for microchannel coils and TXV hunting diagnosis.

Accurate target subcooling formulas (Liquid Line Temperature vs Saturated Liquid)
Microchannel condenser coil charging rules: avoiding hydraulic lock
TXV superheat hunting diagnostics and thermal bulb mounting standards
EPA Section 608 commercial leak rate calculation guidelines (>50 lbs)

Explore Refrigerant Tables →

Procurement & Component Cross-Reference

Commercial RTU OEM Parts & Cross-Reference Directory

Direct factory part numbers, superseding part revisions, and certified cross-references for commercial microcomputer boards, contactors, high-pressure cutouts, and blower motors.

York Simplicity 031-02630-000 and Johnson Controls Metasys OEM boards
Direct replacement 460V 3-phase compressor contactors and phase monitors
Manual and auto-reset high/low refrigerant pressure switches
Verified distributor sourcing with live availability status

Search Parts Catalog →

On-Site Diagnostics

Quick Simplicity® Microcomputer Fault Code Reference

Commercial rooftop units equipped with Simplicity® or ReliaTel boards communicate lockout and operating status via LED flashes. Refer to the matrix below for rapid on-site diagnosis.

LED Flash Code	Condition / Description	Probable Field Causes	Standard Corrective Action	Reference
1 Flash	High Pressure Lockout	Dirty condenser coils, failed condenser fan motor/run capacitor, overcharged system, or non-condensables.	Wash condenser coil fins; check condenser fan motor amperage and capacitor; verify high-pressure switch resets at 375 PSIG.	View Details
2 Flashes	Low Pressure Lockout	Refrigerant leak, defective low pressure switch, failed indoor blower belt, or iced evaporator coil.	Inspect blower belt; check suction pressure against saturation chart; check for leak on copper service ports and coils.	View Details
3 Flashes	Low Evaporator Temp	Low airflow across evaporator, plugged commercial air filters, defective freeze stat sensor, or undersized ducting.	Replace MERV filters; verify static pressure drop across evaporator coil; inspect freeze sensor resistance (10k NTC).	View Details
7 Flashes	Economizer Fault / Enthalpy	Defective outdoor enthalpy sensor, jammed damper gear motor, broken drive linkage, or open actuator circuit.	Manually check damper blade rotation; test 2–10VDC actuator feedback; verify enthalpy sensor resistance in outdoor airstream.	View Details
Continuous Rapid	Phase Monitor Trip	Loss of phase, phase voltage imbalance exceeding 3%, or reversed phase rotation on 3-phase 460V supply.	Check line voltage across L1-L2, L2-L3, and L1-L3 with true-RMS voltmeter; swap any two incoming phases if compressor spins backward.	View Details

View Complete 1–14 Code Directory & Troubleshooting Tables →

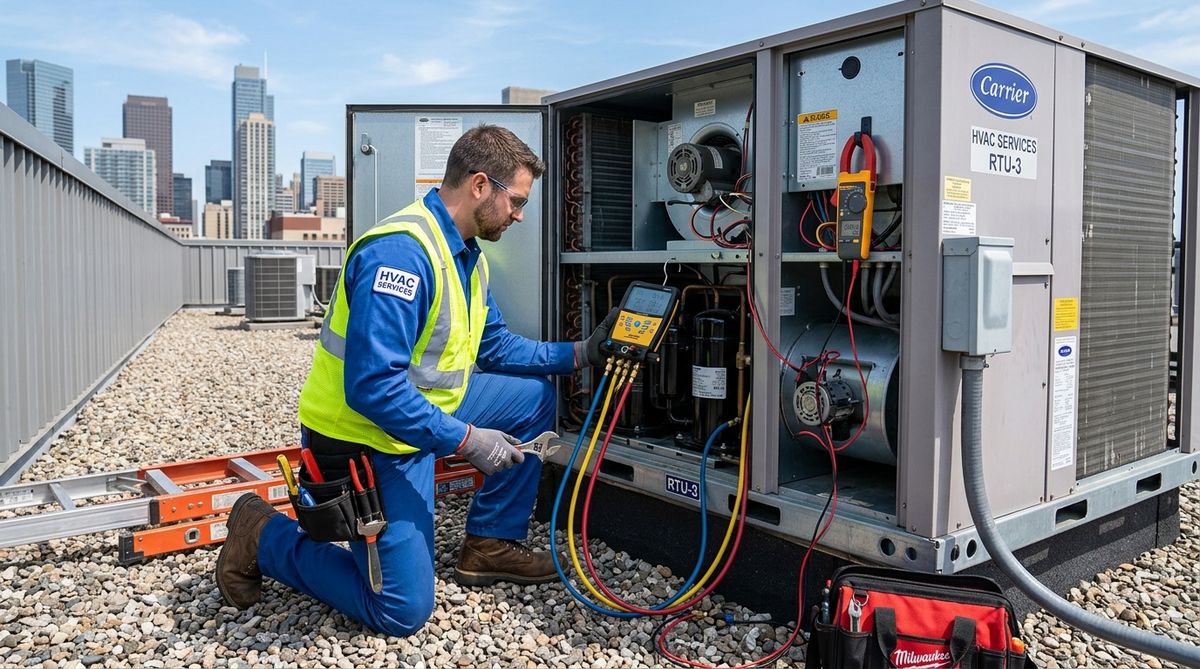

Certified HVAC technician diagnosing commercial rooftop unit
